HTS2077

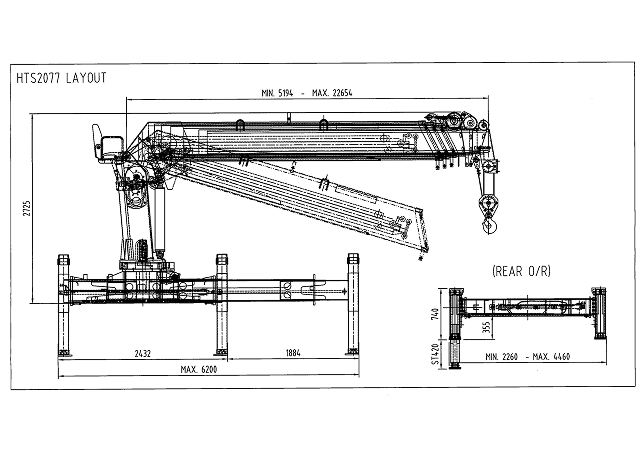

Technical Data for HTS2077 Stick Boom Crane

That allows movement from side to side.

* Specifications may change depending on product performance.

**Product performance table, divided into units, and guided to HTS2077.**
Specifications	Units	HTS2077
Lifting capacity	ton.m (kNm)	18.5(181.4)
Lifting capacity / Outreach	kgf/m	8,000/2.0
		3,400/5.2
		1,010/13.9
		300/22.65

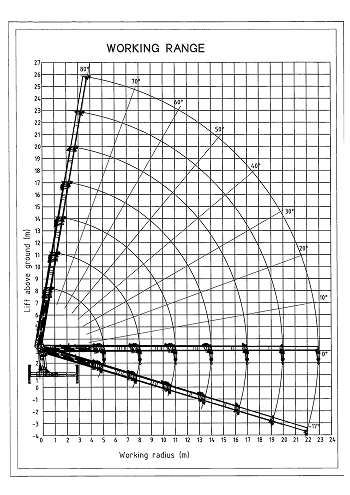

Working radius, Max	m	22.65
Working height, Max	m	26.65
Derrick cylinder	type	Double
Rated oil flow	lpm	63
Working pressure	kg f/cm²	220
Shape of boom	type	Hexagonal box construction, 7 sections
Boom extending speed	m/sec	15.55/40
Boom raising speed	°/sec	(-)17~80/16
Slewing angle	°	360°Continuous
Slewing speed	rpm	2.5
Wire rope	φ * m	10 * 120(Herculus)
Hook speed	m/min	60 (single line)
Winch reduction-gear type	type	Spur gear speed reduction with hydraulic brake
Single line pull	ton	1.75
Slewing reduction-gear type	type	Hydraulic motor driven, type of warm gear speed reduction with hydraulic brake
Outrigger type	type	Vertical and horizontal hyd. acting system
Outrigger span	m	FRONT: 6.20, REAR: 4.46
Truck chassis, recommended	ton	Over 5 ton
Safety Device	-	Overwinding device, Overloading device Hydraulic safety valve, Overcenter valve Check valve for outrigger, Load indicator Auto brake for Winch Hydraulic brake for slewing reducer
