HTS5126

Technical Data for HTS5126S Stick Boom Crane

That allows movement from side to side.

* Specifications may change depending on product performance.

**Product performance table, divided into units, and guided to HTS6156.**
Specifications	Units	HTS 5126S
Lifting Capacity	ton-meter	45.0
Lifting Capacity / Outreach	kgf/m	15,000/2.5
		7,700/5.8
		2,600/13.7
		1,000/25.3

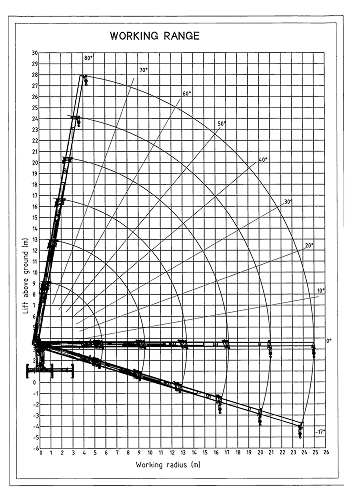

Working Radius	m	25.3
Max. Working Height	m	28.1
Rated Oil Flow	l/min	90/90
Working Pressure	bar	220
Shape Of Boom		Hexagonal box construction 6 sections
Boom Extending Speed	m/sec	19.2/54
Boom Raising Speed	°/sec	-12 ~ 80/30
Slewing Angle	°	360° continuous
Slewing Speed	r.p.m	1.0
Wire Rope	φ * m	14 * 100
Hook Speed	m/min	60(single line)
Winch Type		Hyd. motor driven, spur gear speed reduction with hydraulic brake
Single Line Pull	ton	2.0
Slewing Reduction Gear Type		Hyd. motor driven, worm & planetary gear speed reduction with hydraulic brake
Outrigger Span, Main	Ext / M	6.65
Outrigger Span, Main	Ret / M	4.46
Standard Safety Devices	Ret / M	1. Pressure relief valve for hydraulic circuit 2. Counter balance valves for raise and telescope cylinder 3. Pilot check valves for vertical outrigger cylinder 4. Hydraulic brake for slewing reduction gear 5. Mechanical brake for winch reduction gear 6. Pressure gauge / Boom angle indicator 7. Hook safety latch / Alarm buzzer
